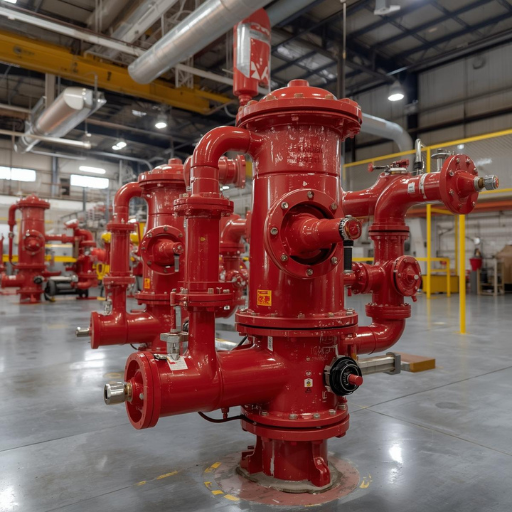

Fire Hydrant System
What is a Fire Hydrant System?
A Fire Hydrant System is a fixed fire-fighting installation designed to supply large volumes of water at high pressure to control and extinguish fires. It is mainly used by trained personnel and fire brigade teams to deal with medium to large-scale fires in commercial, industrial, and high-risk buildings.
Purpose of Fire Hydrant System
- To control and extinguish large fires effectively
- To provide continuous and reliable water supply during fire emergencies
- To support fire brigade operations
To protect human life, property, and critical assets - To ensure compliance with fire safety regulations
Areas Where Fire Hydrant Systems Are Required.
- Industrial plants and factories
- Warehouses and storage facilities
- High-rise residential and commercial buildings
- Shopping malls and
- plazas
- Hospitals and hotels
- Power plants and oil & gas facilities
- Educational institutions
Main Components of Fire
Hydrant System
🔹 Fire Water Storage Tank
Underground or overhead tank
Reserved exclusively for fire-fighting purposes
Water capacity designed as per NFPA standards and site risk.
🔹 Fire Pump Set
Fire pumps provide required pressure and flow.
Types of Fire Pumps:
Main Pump (Electric or Diesel)
Standby Pump
Jockey Pump (maintains system pressure and prevents frequent pump operation)
🔹 Hydrant Piping Network
Manufactured from MS or GI pipes
Installed throughout indoor and outdoor areas
Designed in ring main or grid pattern for uniform water distribution
🔹 Hydrant Valves & Accessories
Landing valves (single / double outlet)
Fire hoses (canvas / rubber lined)
Branch pipes and nozzles
Hose boxes and cabinets

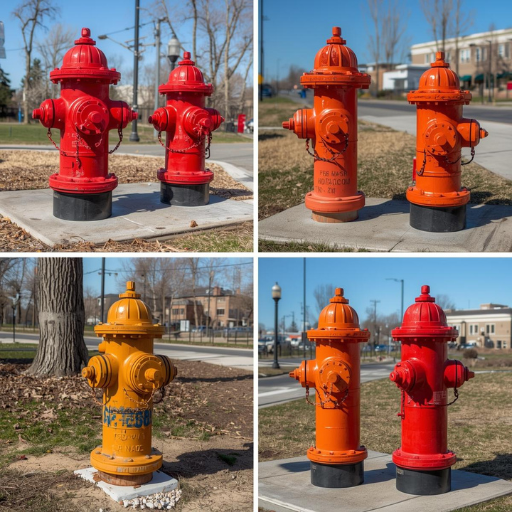

🔹 External Fire Hydrants
Installed in open areas, roads, and boundaries
Easily accessible for fire brigade vehicles
Working Principle of Fire Hydrant System
When a hydrant valve is opened, system pressure drops
Jockey pump activates first to stabilize pressure
If pressure continues to drop, main fire pump starts automatically
Water flows through hoses and nozzles at high pressure
Fire is controlled or extinguished efficiently.
Fire Hydrant System Standards
Designed and installed as per NFPA 14 & NFPA 20
Fire pumps, pipe sizes, flow rates, and water storage meet required standards
Regular inspection, testing, and maintenance are mandatory
🛠️ Our Fire Hydrant System Services
🔧 Design & Engineering
Site survey and risk assessment
NFPA-based system design
Hydraulic calculations and layout drawings
🔧 Supply & Installation
Fire pump supply and installation
Hydrant piping network installation
Installation of landing valves, hoses, and accessories
Complete indoor and outdoor hydrant system setup
🔧 Testing & Commissioning
Hydrostatic pressure testing
Flow and pump performance testing
System commissioning as per safety checklist
🔧 Repair & Maintenance
Annual Maintenance Contracts (AMC)
Fire pump servicing and repair
Valve, hose, and accessory inspection
Leakage repair and pressure correction
🔧 Modification & Upgradation
Upgrading old or non-compliant systems
Capacity enhancement as per new requirements
Extension of hydrant coverage for new buildings
Benefits of Fire Hydrant System
✔ Effective control of large fires
✔ Continuous high-pressure water supply
✔ Fire brigade friendly system
✔ Durable and long-lasting infrastructure
✔ NFPA compliant fire protection solution
✔ Suitable for industrial and commercial use.
